IN PRODUCTION - EXPECTED JUNE 2026

Nathan’s No. 11 “Simplex Type R” Injector was commonplace nationwide on a wide variety of locomotives from SP 0-6-0’s to heavy Mikados, and with its simple balanced lever operation, it has become a highly desired product for our live steam models since Barry Hauge first introduced them to our hobby decades ago.

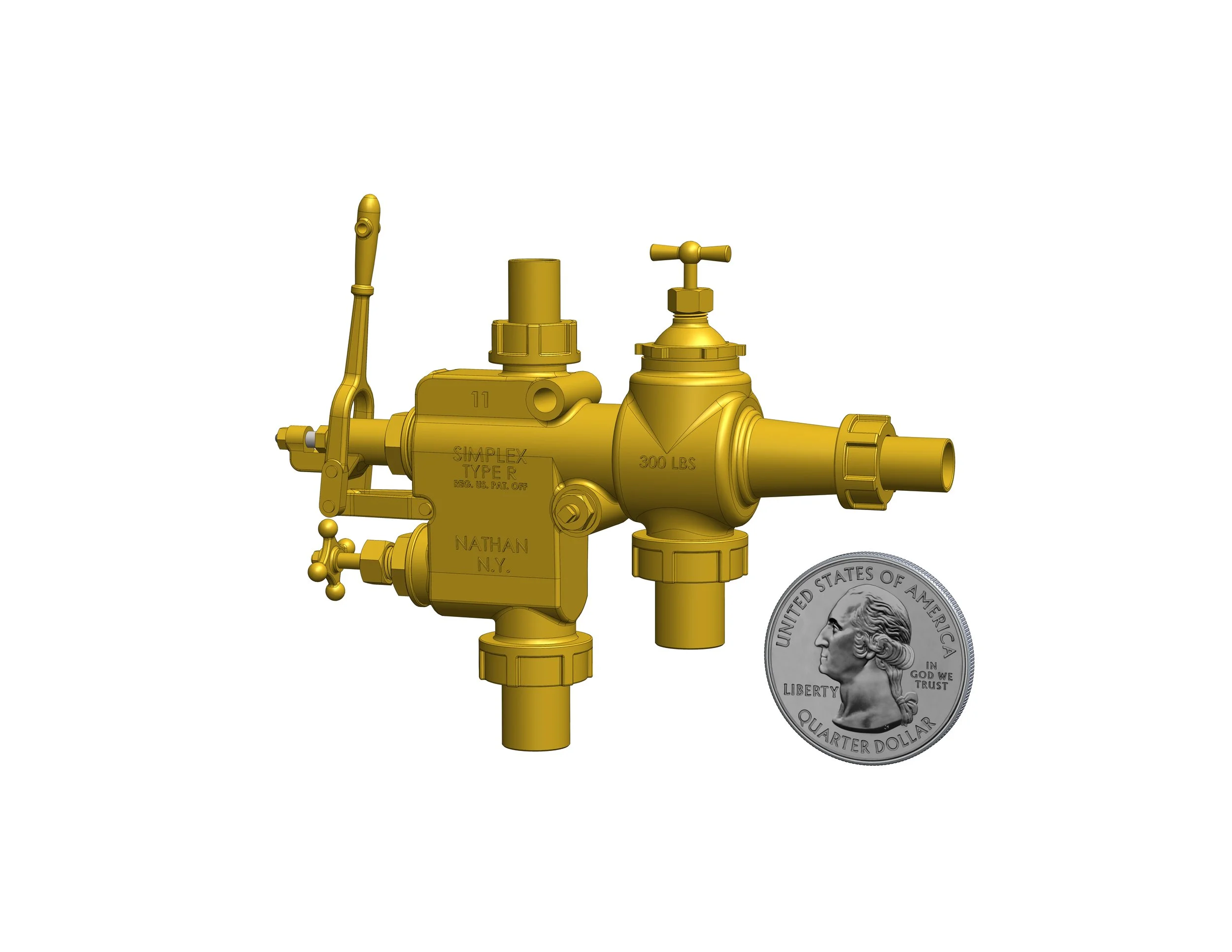

Eccentric Engineer is proud to offer the Nathan Simplex in 1” scale for the very first time. Like its1.6” scale counterpart, it is modeled directly from Nathan blueprints and is uncompromising in its faithfulness to the original.

FEATURES

• Lifting / automatically restarting steam injector

• 35-160psi

• Steam inlet: 3/16” tubing

• Delivery outlet: 3/16” tubing

• Water inlet: 1/4” tubing

• Overflow: 1/4” tubing

• 2 Pints per Minute (1.75 l/m) nozzles (recommended for 5”-8” diameter boilers)

• Spanner wrenches included

• Instruction & Maintenance Manual included

• Individual serial numbers
