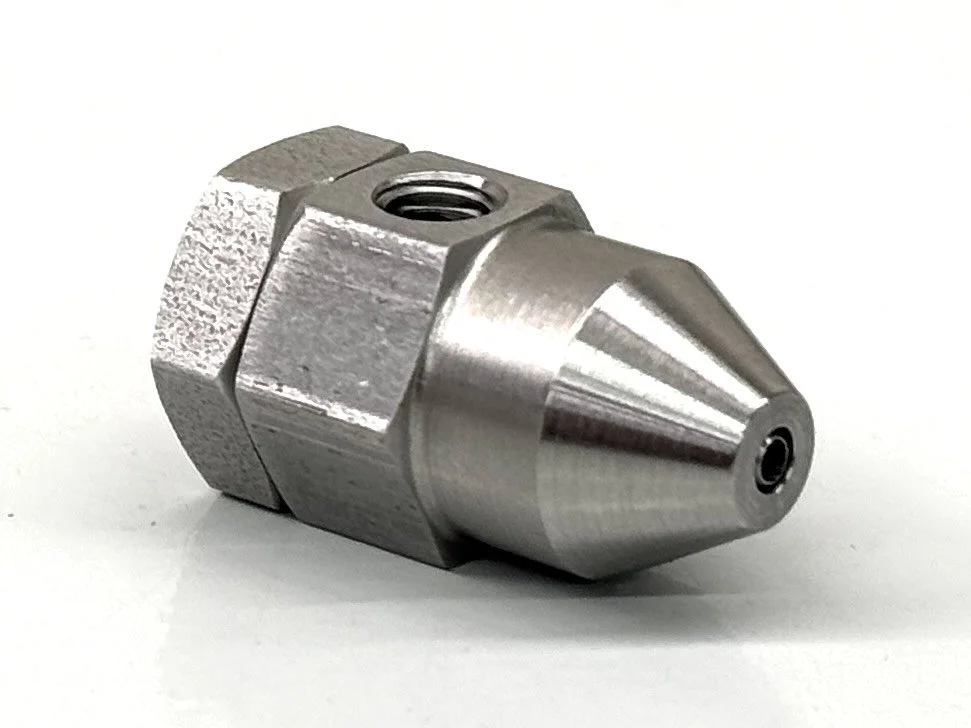

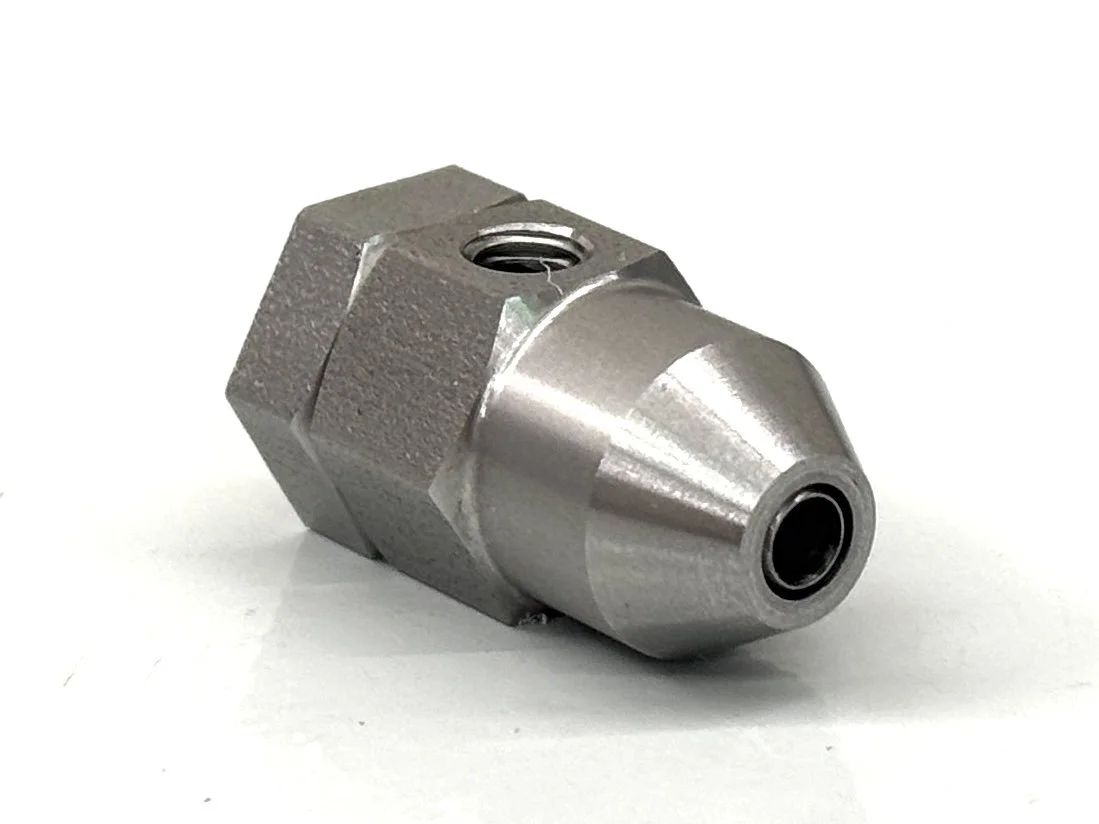

Eccentric Engineer is happy to re-introduce our first product: the spiral atomizing oil burner.

Originally designed for small fireboxes (4.75” gauge and small 7.5” locomotives), we now have a second variant which is capable of burning 4x more fuel than the original design for larger engines.

Key features:

• Stainless Steel Construction

• 3/16” MTP Steam inlet (side)

• 1/4” MTP Oil Inlet (rear)

• 1/2” Hex body

• Self-priming / lifting

• Spiral jet pattern, which helps thoroughly atomize the fuel for better fire control, and helps eliminate dribbling.

Original design for small fireboxes has a 1/16” through hole for oil.
New/additional enlarged design has a 1/8” through hole.
Both atomizers are externally identical, so they could be swapped if you decide the one you purchased is the wrong size.
