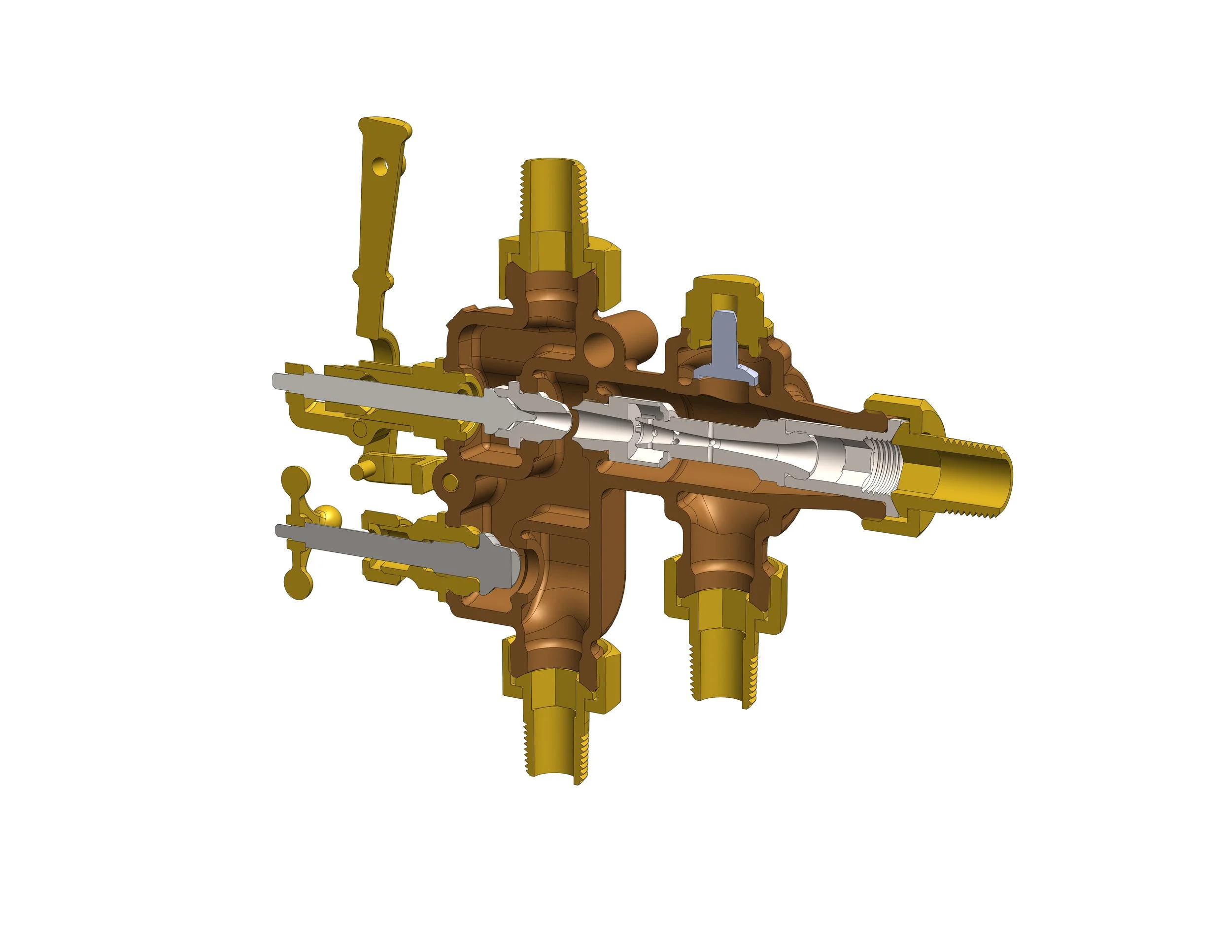

EE No. 2 “Simplex” Injector

expected june 2024

Production quantity has been set. Limited remaining availability for pre-order!

The No. 2 Simplex injector Specifications:

• Operating Pressure: 50-200psi

• Capacity: 120 gallons per hour at 200psi

• Capacity adjustable with water valve to 60%

• Priming position for prompt lifting

• Built-in water valve with tell-tale to quickly see valve adjustment

• Lost wax bronze body & handles

• Stainless steel nozzles

• Stainless steel valve stems

• 3/8” NPT Connections w/ Internal hex for easy installation

• Mounting hole for optional bracketing

Click Photos to Enlarge

DEPOSITS

Due to the nature of this project, non-refundable deposits will be required to secure an injector. 25% is required per unit ($625), and the balance due when the injectors are ready to ship. Payment plans are possible for larger orders.
